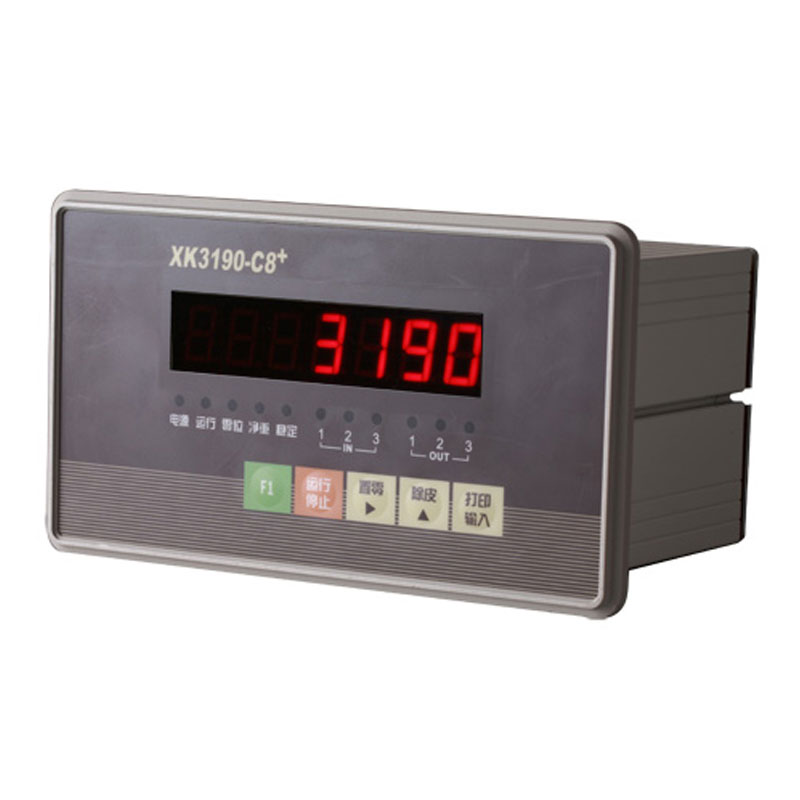

XK3190-C8+
YAOHUA
| Quantity: | |
|---|---|
Analog isolation output.
The software operation menu is simplified, and one key enters the set target state.
Adopt independent menu mode, common parameters and advanced parameters are set independently.
Optical isolated switching inputs, 3 switching (built-in 3 relays) output control.
High-precision A/D conversion with readability up to 1/30000.
There is no need to re-calibrate the table change, just enter the parameters of the original instrument and use it.
Set of addition /subtraction scale / sorting scale / upper and lower limit alarm / peak holding and other functions in one.
Parameters such as quantitative value, advance amount, upper and lower limits, and node delay can be freely set according to the application.
1-2 ingredients can be selected in addition/subtraction scale mode, and external control/self-test/free upper and lower limit mode can be selected in sorting scale mode.
Accuracy class: 3 grades, n=3000
AD conversion mode: Σ-delta conversion mode
AD conversion code: 24bit
Conversion speed: 80 times/sec
Input signal range: -19mV~+19mV
Input sensitivity: ≥1uV/e
Nonlinearity: ≤ 0.01% F.S
Full-scale temperature coefficient: ≤8PPM/°C
Sensor bridge power supply: DC: 5V; 350mA
The number of sensor connections: 1 to 8
